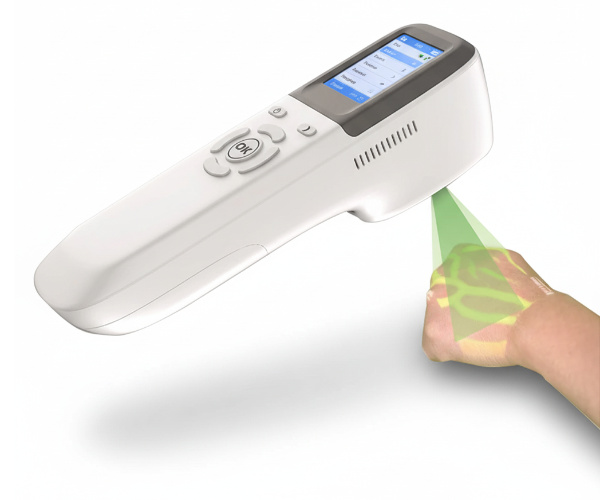

The QV-600 Vein Finder is an advanced infrared vascular imaging device that provides real-time visualization of veins, improving accuracy and efficiency in venipuncture and related procedures. Designed for versatility, it adapts to different ages, skin tones, and body types, making it suitable for adults, children, and infants. The device enhances success rates for difficult vein access cases and is ideal for elbow puncture, plastic surgery, and pediatric applications.

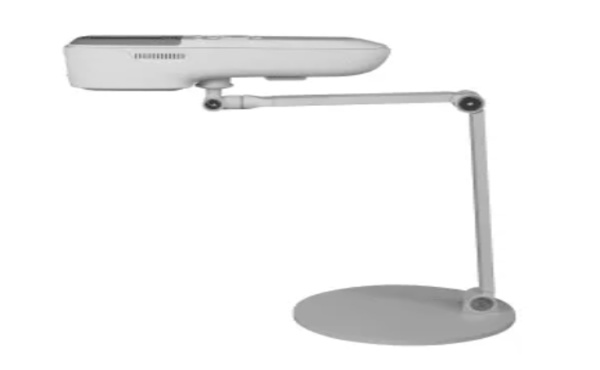

The QV-600 combines ergonomic design with precision DLP projection technology, ensuring clear visualization of both superficial and deep veins. Its lightweight and portable construction, optional desktop or trolley mounting, and long battery life make it perfect for use in hospitals, clinics, and emergency settings.
Key Features:
Twelve Color Modes: Optimized for different skin tones and lighting conditions
Three Image Sizes: Suitable for adults, children, and newborns
Six Brightness Levels: Adjustable for comfortable image clarity
Software Hair Removal: Eliminates interference for cleaner imaging
Puncture Guide Lines: Indicates the most suitable needle insertion point
Five Mixture Colors: Displays vein depth information
Enhancement Mode: Improves visibility of thin and deep veins
Inversion Mode: Allows user-preferred display customization
Sleep Mode: Energy-saving standby with adjustable wake-up time
Photograph & Storage: Stores up to 6000 venous images, accessible via computer
Battery Capacity Monitoring: LCD display with low battery alerts and auto-shutdown (35 min inactivity)
Multilingual Interface: Supports 14 languages
Video Function: Integrated playback for training and documentation
Technical Parameters:
Detection Method: Infrared light (harmless to human body)
Infrared Wave Range: 760–940 nm
Detection Depth: 0–10 mm
Optimal Detection Distance: 18–26 cm
Vessel Position Accuracy: ±0.3 mm
Vessel Resolution Accuracy: ≤0.3 mm
Working Noise: ≤35 dB
Battery: Samsung 4900 mAh rechargeable lithium battery
Battery Life: 3.5 hours continuous use
Projection Technology: DLP (Digital Light Processing)
Power Supply: Input 100–240V, 50–60Hz AC; Output 5V, 4.5A DC
Weight: 450 g
Size: 24 × 6 × 6.5 cm (L×W×H)
