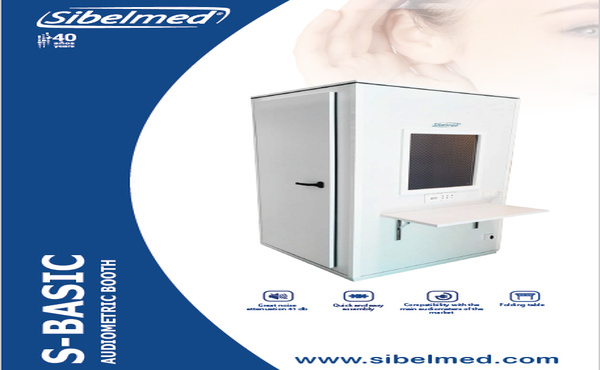

The S-BASIC audiometric booth is built with the latest sound insulation materials, offering a high acoustic insulation index while remaining lightweight and cost-effective.
It combines functionality, aesthetics, and comfort with a washable melamine exterior, pyramid foam interior, and integrated LED lighting.
The booth is compatible with all major audiometers on the market.
Features
External booth: 96 × 96 × 208 cm
Internal booth: 86 × 86 × 190 cm
Window: 70 × 58 cm
Door: 80 × 188 cm
Foldable table: 80 × 40 cm
External material: Melamine
Internal material: Pyramid foam
Lighting: Circular LED lamp
Floor: Washable polyester
Power supply: 220 V, 50/60 Hz (other voltages optional)
Connection board: 5 jacks Ø 6.3 mm + 1 jack Ø 3.5 mm
Weight: < 200 kg
Regulations & Compliance
The S-BASIC booth complies with international quality and safety standards:
EN 60601-1:2006+AC:2010+A1:2013
EN 60601-1-6:2010+A1:2015
EN 62366:2008+A1:2015
EN ISO 14971:2019
EN 1041:2008+A1:2013
EN ISO 15223-1:2016
Laboratory Validation:
Acoustic performance tested per UNE-EN ISO 11957:2009
Acoustic reduction calculated per UNE EN ISO 717-1:1997
Quality Standards:
ISO 9001:2015
EN ISO 13485:2016+AC:2018
Compliant with Medical Device Regulation (EU) 2017/745
SIBELSOUND DUO · Two-Channel Audiometer
Key Features
Color touch screen display
Lightweight and portable with carrying case
Two models: AOM
Database: > 1,000 tests with unlimited patient storage
Automatic Hughson-Westlake audiometry protocol
Data export via Ethernet in PDF, XML, CSV formats
USB and Ethernet connectivity for PC integration
Compatible with W50 Audiometry Software
