Medical LED Headlight – Model: EL-P45
Key Features
Flexible Tube: 360° free adjustment, stable positioning, long-term reuse without loosening.
Housing: Slim design ensures no blocking of coaxial lighting.

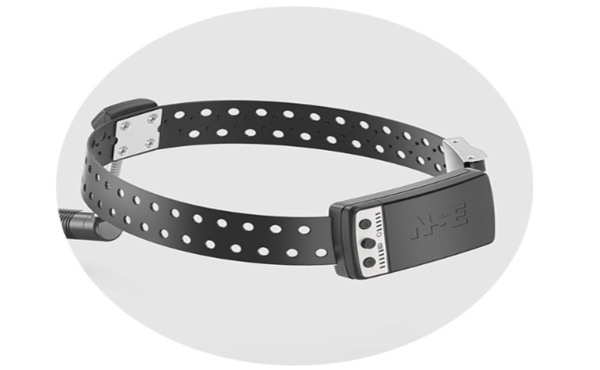

Headband: Wireless, ergonomic, and lightweight design.
Made from durable polymer material, foldable, comfortable for long-term wear.
Battery: Polymer lithium battery, green, safe, and reliable.
Light Spot:Intelligent constant current control ensures stable illumination.
Innovative photodynamic design provides strong and uniform spot lighting.
Advanced Technology
Optical System: Developed with German nanoscale technology.
High utilization of light energy with precise, uniform illumination.
Smallest lamp housing diameter in the industry.
Locating Mechanism: Flexible, omni-directional lamp holder.
Solves issues of mechanical positioning, ensuring durability.
Circuitry: Low power intelligent constant current (SMPS).
Stable illumination with no decay as battery depletes.
Built-in power detection, dimming, and overheating protection.
Overall Structure: Lightweight, compact, and wireless design.
Integrated power supply in thin headband for aesthetics and functionality.
Applications
Suitable for gynecology, otolaryngology, stomatology, emergency medicine, and veterinary surgery.
Ideal for examinations and surgical lighting – portable, efficient, and expert-recommended.
Technical Specifications
Light Spot Diameter 88mm at 450mm distance
Max. Light Intensity 40,000 lux at 200mm distance
Illumination Adjustment 5 levels
Power Indication 5 levels
Housing Diameter 18mm
Housing Adjustment Range Any angle
Battery Life Up to 24 hours (varies with current)
Color Temperature 5,500K – 6,500K
LED Lifetime 100,000 hours
Battery Data 2000mAh, 3.7V, rechargeable, detachable & replaceable
Weight 130g (including battery)
