Ecleris Microstar OM-100
Light Weight Microscope for All Medical Applications
-

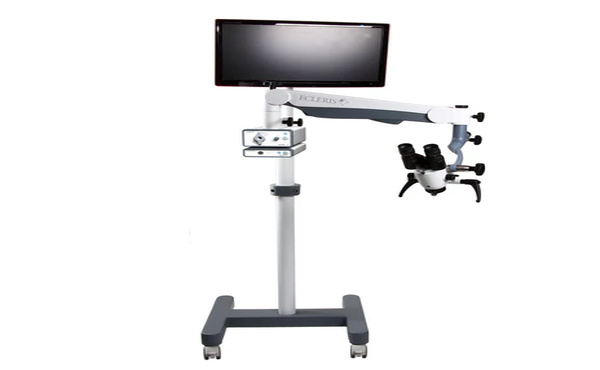

The OM-100 microscope is designed with a modern base and column,
providing easy mobility and comfort for physicians, while ensuring
stability during use. Equipped with the WBS (Weight Balance System),
it offers smooth positioning and firm movements.
Illumination Options:
1. Dual 150W Halogen Light Source
- Entry-level
- 7mm fiberoptic cable
- Adjustable mechanical diaphragm
- Continuous light intensity control with white light color
2. 180W Xenon Light Source
- Advanced option
- True white light
- Adjustable mechanical diaphragm
- Continuous light intensity control
3. LED Light Source
- 50,000 hours of operation between bulbs
- 7mm fiberoptic cable
- Adjustable mechanical diaphragm
- Continuous light intensity control
Additional Features:
- With C-mount converter and endocoupler, the light source and
videocamera from the microscope can be used for endoscopic
procedures, eliminating the need for a second video system.
-
Technical Specifications
-
Series: Microstar OM-100 Microscope
Binocular Tubes: Straight / 45° Inclined / 180° Inclinable
Objective Lens: f: 200 / 250 / 300 / 400
Magnifications: Manual changer, 5 positions:
4X / 6X / 10X / 16X / 25X
Fine Focus: Manual integrated infocal lens
Eye Pieces: 10X wide angle / 12.5X optional
Dioptric setting: +/- 5
Field of View (10X): Ø 24mm / 0.95" (200mm)
Ø 31mm / 1.22" (250mm)
Ø 36mm / 1.42" (300mm)
Ø 41mm / 1.61" (400mm)
Interpupillary Distance: 2.16" – 2.95" (55 – 75mm)
Filter: Green / Orange
Illumination: Coaxial illumination through 7mm fiberoptic light guide cable
Illuminated Field: Ø 70mm (200mm)
Ø 90mm (250mm)
Ø 107mm (300mm)
Ø 145mm (400mm)
Light Source: LED, 80W, 50,000 hours of life
Power Supply: 110 – 240V
Frequency: 100 – 240VAC, 50/60Hz
