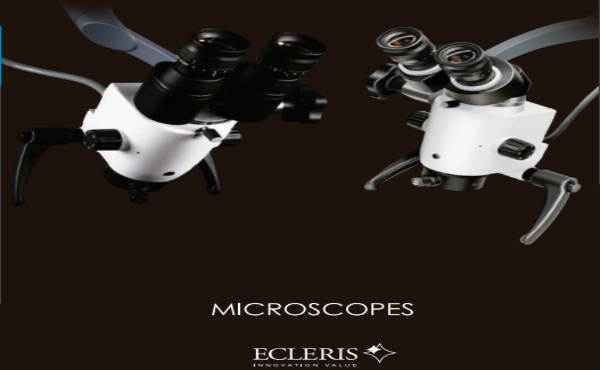

Ecleris Microstar OM-100
Light Weight Microscope
-
The OM-100 microscope is designed with a modern base and column,
providing easy mobility and comfort for physicians, while ensuring
stability during use. Equipped with the WBS (Weight Balance System),
it offers smooth positioning and firm movements.
-
Technical Specifications
-
Series: Microstar OM-100 Microscope
Binocular Tubes: Straight / 45° Inclined / 180° Inclinable
Objective Lens: f: 200 / 250 / 300 / 400
Magnifications: Manual changer, 5 positions:
4X / 6X / 10X / 16X / 25X
Fine Focus: Manual integrated infocal lens
Eye Pieces: 10X wide angle / 12.5X optional
Dioptric setting: +/- 5
Field of View (10X): Ø 24mm / 0.95" (200mm)
Ø 31mm / 1.22" (250mm)
Ø 36mm / 1.42" (300mm)
Ø 41mm / 1.61" (400mm)
Interpupillary Distance: 2.16" – 2.95" (55 – 75mm)
Filter: Green / Orange
