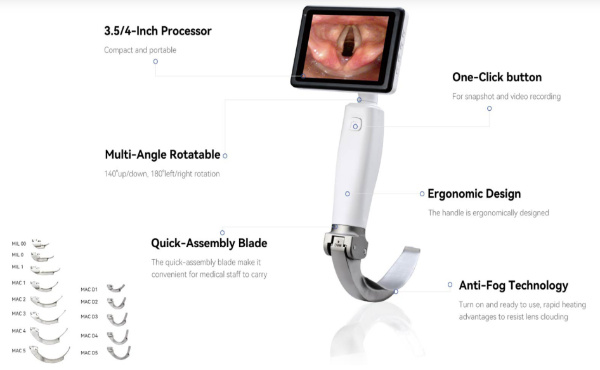

HugeMed Disposable Video Laryngoscope VL3D
Safe. Fast. High-Definition. Disposable.
The HugeMed VL3D Disposable Video Laryngoscope is designed for safe, effective, and infection-free intubation. With single-use disposable blades, it eliminates cross-contamination risks while ensuring high-definition visualization for airway management. Ideal for hospitals, ICUs, and emergency use.
Blade Options (VL3D Disposable)
MAC 1
MAC 2
MAC 3
MAC 4
MAC 5
Key Advantages
Safety
Vacuum-packed disposable blades – no cross-infection
Anti-shatter, anti-fog, anti-microbial handle
Reusable blades: 316 medical stainless steel (high flexure strength, IPX8 waterproof, safe for deep disinfection)
Blade–console connection tested to withstand >300kg pressure
Faster
Lightweight and portable design
Quick installation & blade removal
Optimized for rapid intubation
High-Definition
3.5” anti-reflective full-view LCD display
High-resolution 2.0 MP camera
66° wide field angle
Illumination >800 LUX
Easier
Rechargeable Li-ion battery (>300 min runtime)
One-touch video recording
Ergonomic, non-slip handle
Cost-Effective
Low-cost disposable blades
Reusable blades: up to 1000 uses

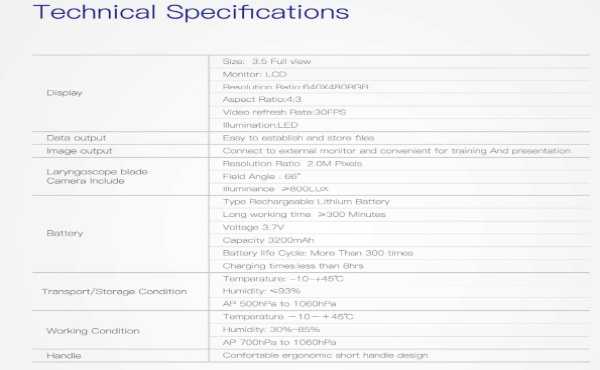

Technical Specifications
Display
3.5" Full view LCD
Resolution ratio: 640x480
Aspect ratio: 4:3
Refresh rate: 30 FPS
LED illumination
Camera
2.0M pixels resolution
66° field angle
800 LUX brightness
Battery
3.7V rechargeable lithium battery (3200mAh)
Runtime: >300 minutes
Charging time: <8 hours
Life cycle: >300 charges
Durability & Conditions
Operating temp: –10°C ~ +45°C
Storage temp: –10°C ~ +45°C
Humidity: 30%–93%
Pressure: 500hPa – 1060hPa
Handle
Comfortable, ergonomic short-handle design
Applications
Anesthesiology
Emergency Medicine
Intensive Care Units (ICU)
Operating Rooms
Pediatrics & Neonatology
