VL3S Video Laryngoscope
-
350mm working length

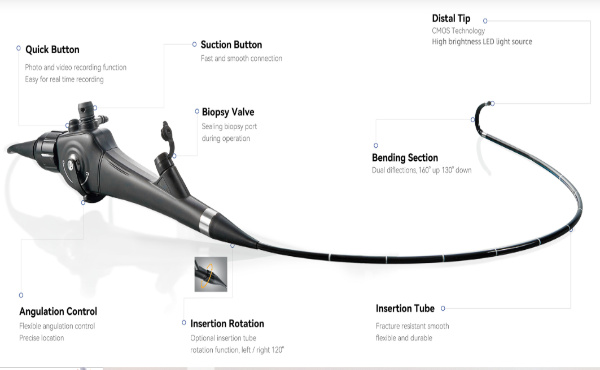

Main Components:
- Display:
* High-definition control rotation angle up to 270°
* 4 functional buttons, USB port, HDMI port for big display
- Camera System:
* Photo and video recording function
* Easy for clinical teaching and training
- Quick Handlings:
* 1 lock design
* Simple operation
* Strong, wear-resistant and efficient
- Suction Button:
* Fast connection
* Smooth suction
- Working Channel:
* Inner diameter 2.2mm/2.8mm available
- Biopsy Valve:
* Cover the opening for biopsy port
- Angulation Control:
* Flexible angulation control
* Precise location
- Insertion Part:
* Flexible, resistant, smooth, flexible and durable
- Distal Tip Part:
* Dual anti-fog lens Ø12° view
* CMOS HD technology
* High brightness LED light source
-
Reusable Rhinolaryngoscope (Flexible type)
-
Features:
- Portable: Completely mobile, compact and space-saving
- Ergonomic design: Marvelous balance for superb handling and reduced fatigue
- Application: Easy to operate in OPD, Endoscopy Room, Teaching Hospital, etc.
- Benefits: Wide field-of-view and angulation range allow easy orientation
-
Specification
-
Model: VL3S
Display Size: 3.5 inch HD monitor, 16:9 widescreen, LCD processor
Resolution: 640*480 pixels
Processor Part: CPU ARM
RAM 512MB
Flash 4GB
TF Card: Max 32GB
Function: Talking photo and video recording, Teaching replay and record
White balance correction
Color temperature correction
Battery: Lithium ion battery
Battery Capacity: 3200mAh
Working Time: Continuous working 2–3 hours
Charging Time: ≤3 hours
Output Port: HDMI / USB 2.0
Suction Function: Suction pipe available
Biopsy Port: Included
Suction Valve: Included
Scope Type: Length: 350mm
Distal end: 5.1mm / 4.2mm / 3.8mm / 3.2mm
Working channel: 2.8mm / 2.2mm / 2.0mm
Field of view: 90°
Depth of view: 3–100mm
Angulation up: 130°
Angulation down: 130°
-
