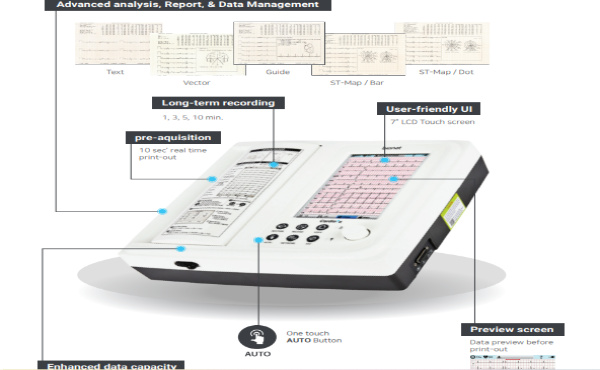

BIONET CARDIO7e – SIMPLIFYING WORKFLOW WITH SMART ECG TECHNOLOGY
Streamline your workflow with the advanced Bionet ECG Model Cardio7e, designed for
fast, accurate, and user-friendly operation. With a bright 7” touchscreen, advanced
interpretation, and seamless connectivity, Cardio7e ensures reliable results in
any clinical setting.
KEY FEATURES
EASY Operation
• 7” Bright Color LCD Touchscreen for intuitive use
• On-screen alphanumeric keyboard for quick data entry
• Patient ID entry via barcode scanner
• Lead fault detection & pacemaker detection
• One-touch “AUTO” acquisition, save, print & transfer
• A4 format print-out with 12-channel interpretation
SIMPLIFYING Workflow
• Direct worklist order retrieval and patient ID entry
• DICOM file transfer to PACS
• Easy file conversion: PDF, XML, MFER, BMP, JPEG
EFFICIENT Data Management
• 5 minutes of full disclosure for arrhythmia review
• 200 ECG internal memory capacity
• Long-term HRV analysis (1, 3, 5, 10 min recordings)
• Pre-acquisition (10 sec) for instant rhythm capture
ADVANCED Analysis & Report
• VECTOR, GUIDE, TEXT reporting options
• Patented Bionet ST-MAP for advanced interpretation
• 120+ diagnostic interpretations (based on Minnesota Code)
EXCELLENT Connectivity
• LAN & WiFi bidirectional connection to PACS/EMR/HIS
• USB ports for barcode scanner, memory, and keyboard
-
TECHNICAL SPECIFICATIONS
-
• ECG Leads: 12-lead simultaneous resting ECG
• Gain: 2.5, 5, 10, 20 mm/mV
• Sampling Rate: 500 samples/sec/channel
• Filters: AC filter (50/60Hz), EMG filter, Drift filter
• Display: 7” color TFT touchscreen
• Printer: Built-in A4 thermal printer (200 dpi)
• Data Storage: 200 ECGs internal memory
• Battery: Rechargeable Li-ion, 11.1V, 2500mAh
• Size & Weight: 340 x 321 x 101 mm, 3.5 kg
• Communication: LAN, WiFi, USB, DICOM
-
STANDARD ACCESSORIES
-
• Patient Cable (1 EA)
• Limb Electrodes (4 EA), Chest Electrodes (6 EA)
• ECG Chart Paper (1 EA)
• Power Cord (1 EA)
• Ground Cable (1 EA)
• Carrying Case (optional)
-
BIONET CARDIO7e – Designed for speed, accuracy, and simplicity in modern healthcare.
