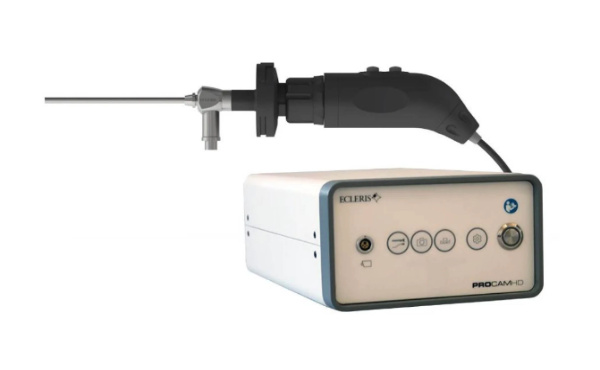

ECLERIS PROCAM HD
FULL HIGH DEFINITION ENDOSCOPY CAMERA
1920 x 1080p
FEATURES
-

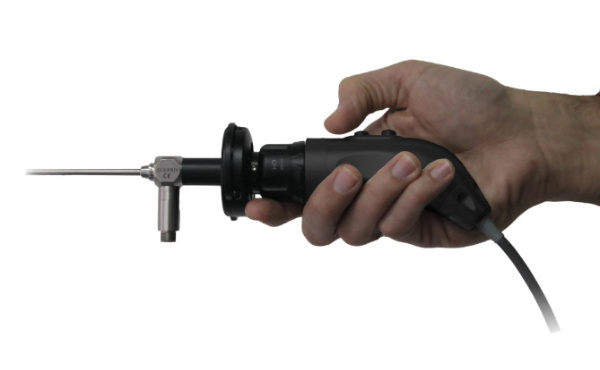

• Ergonomically designed camera head (cool and compact)
• Automatic white balance with memory function
• Preset parameters for different medical applications
• 2 function keys on camera head (zoom & brightness control)
• Excellent color reproduction
• Sharp, high-definition images
• Superior depth perception
PRE-LOADED APPLICATIONS
• Sinuscopy & Otoscopy
• Laryngoscopy
• Fiberscope
• Laparoscopy
• Cystoscopy & Hysteroscopy
• Arthroscopy
TECHNICAL SPECIFICATIONS
-
Voltage: 120 - 240 VCA, 50/60 Hz
Power: 25W
Sensor Chip Size: 1/3" Sony CMOS sensor chip
Output Video: 1920 x 1080p, 60 fps
Output Ports: HDMI, DVI, VGA, SDI, CVBS
Image Display Ratio: 16:9
Image Shutter Speed: 1/60 ~ 1/15360 sec
TV System (CVBS AGC): NTSC
Signal-to-Noise Ratio: ≥ 50 dB
Minimum Illumination: 1 Lux F1.2
Controls on Camera Head:
- Zoom
- Brightness
Controls on CCU:
- White Balance
- Still Image
- Specialty Functions
- Advanced Menu
