SPIROLAB
All-in-one Desktop Spirometer
Rapid and comprehensive reporting for professional use.
SUPPORTED TESTS
- Spirometry: FVC, VC, MVV, PRE/POST bronchodilator comparison
- Oximetry (optional): Spot test (SpO2%, BPM)

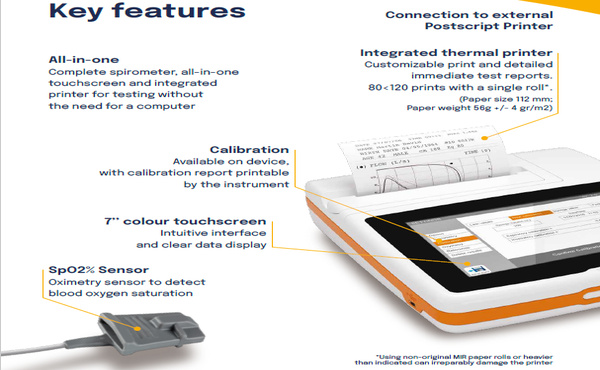

KEY FEATURES
- All-in-one: Touchscreen with integrated printer
for immediate test reports, no PC required
- 7” colour touchscreen: Intuitive interface and
clear data display
- Integrated thermal printer: 80-120 prints
with a single roll
- Connection to external Postscript printer
- Calibration available on device with
calibration report printable
- Integrated temperature sensor with
automatic BTPS conversion
- Pediatric incentive graphics for children
- Large internal memory: Up to 10,000 spirometry
tests or 500 hours of oximetry
- Long-lasting rechargeable battery for
extended autonomy
- EMR/EHR connectivity: Integration with
MIR Spiro software via HL7, GDT, FHIR,
Exchange Protocol
MEASURED PARAMETERS
Spirometry (via software or stand-alone):
- FVC, FEV1, PEF, FEV1/FVC, FEV6, FEF25-75,
FET, ELA, MVV, IC, ERV, IRV, TV, VT, TI, TE,
Ttot, Rf and more
Oximetry (optional):
- SpO2% (Baseline, Min, Max, Mean)
- BPM (Heart Rate)
- Wrist Rate Events (bradycardia, tachycardia)
- Tot Time, Measured Time
TECHNICAL SPECIFICATIONS
Size: 220 x 210 x 51 mm
Weight: 1450 g (battery pack included)
Display: 7” colour touchscreen (800 x 480 pixels)
Power Supply: Rechargeable Ni-MH battery
Autonomy: ~10 hours
Connectivity: USB 2.0, Bluetooth 5
Mouthpiece: Ø 30 mm (1.18 inches)
Flow Range: 0–16 L/s
Volume Range: 0–10 L
Volume Accuracy: ±3% or 50 mL
Dynamic Resistance: <0.5 cm H2O/L/s
Protection: IPX1 (against water penetration)
COMPATIBLE TURBINES
FlowMIR® Disposable Turbine
- Mouthpiece: Disposable included
- Disinfection: Not required
- Calibration: Not required
- Packaging: Individually packaged, 60 pcs
- Antiviral filter: Optional
Reusable Turbine
- Mouthpiece: Required, not included
- Disinfection: Required
- Calibration: Required
- Packaging: Pack of 1 unit
- Antiviral filter: Recommended by ATS
YOUR RELIABLE ALL-IN-ONE SOLUTION
Spirolab combines accuracy, portability, and
connectivity for advanced lung function testing
in hospitals, clinics, and research centers.
