TSQ Table Top Autoclave 18L

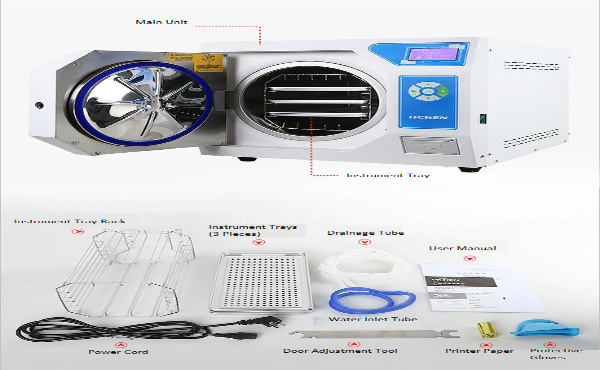

The TSQ Table Top Autoclave is a high-performance desktop sterilizer designed for use in medical and health institutions, operating rooms, and laboratories. It is built with a sterilization chamber, instrument trays, water tank, control system, and power supply system.
The inner chamber is made of SUS304 or SUS316L stainless steel, ensuring durability and long service life. It provides precise sterilization with temperature deviations controlled within 0–3°C and timing errors within 10% of preset values.
Equipped with preset programs at 121°C and 134°C, it guarantees reliable sterilization performance for a wide range of medical instruments and laboratory materials.
Product Features
Microcomputer control with LCD display and adjustable sterilization time
Multiple sterilization procedures selectable depending on the load type
Beep reminder upon sterilization completion with automatic shutdown
Optional built-in or external printer for record keeping
Safety interlock system prevents door opening under pressure
Self-expanding silicone sealing ring for superior sealing and durability
Triple pulse vacuum improves steam saturation and sterilization efficiency
Internal steam circulation system prevents steam discharge, ensuring a clean, dry environment
Full lift safety valve protects against overpressure
Built-in drying function to reduce residual moisture on sterilized items
Chamber constructed from thickened 304 stainless steel for durability
Indicator lights clearly display working status
Rapid sterilization cycle: 4–6 minutes
Over-temperature & over-pressure protection with safe water-lacking shutdown
Automatic cool air exhaust
Three stainless steel sterilizing plates included
Technical Specifications
Model TSQ-A18L (Tabletop Autoclave)
Volume 18 L
Chamber Size 250 mm × 360 mm
Max Working Pressure 0.22 MPa
Time Scope 0–99 min
Sterilizing Temperature 121°C – 134°C
Adjustment of Temperature 105–134°C
Instrument Containers 5 levels with 3 trays
G.W./N.W. 56 kg / 44 kg
Power AC220V / 50Hz / 1.8KW
Compact and durable design
Rapid, precise sterilization
Safe and user-friendly operation
Supplied By: Mastermed Equipment Trading LLC
