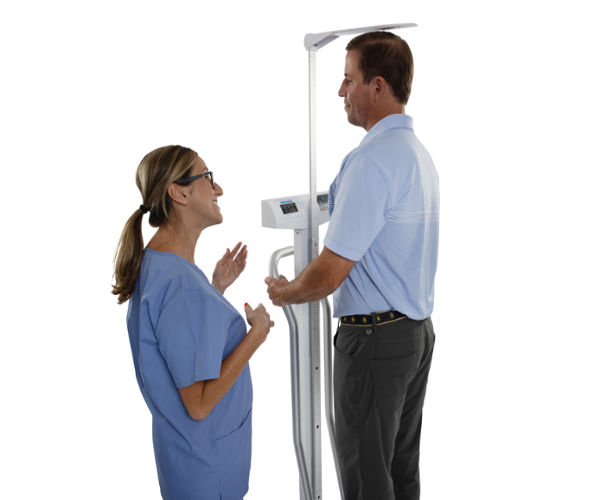

Health o meter 502KL
Primary Care Scale with Integrated Digital Height Rod
The 502KL is the newest member of the number-one-selling family of physician scales. Designed to meet the needs of doctors’ offices, hospitals, clinics, and long-term care facilities, it combines advanced EMR connectivity, reliable performance, and patient comfort in one professional device.
With its fully integrated digital height rod, reinforced base, and wide platform, the 502KL provides accurate, easy-to-use measurements up to 660 lb / 300 kg.
Key Features
Integrated Digital Height Rod (120–202 cm / 3ft 11.2"–6ft 7.5") for quick weight & height measurements.
High Capacity: up to 660 lb / 300 kg.
User-Friendly Digital Interface with BMI, tare, reweigh, hold/release, recall, and Everlock® permanent unit lock.
EMR Ready: Optional wireless connectivity for seamless integration with EMR systems.
Portability: Two transport wheels and an extra-wide 8” wheelbase for easy movement.
Reinforced Base & Low Platform Height: Ensures patient stability and comfort.
Handlebar Accessory (500HB) available for added patient support.
Technical Specifications
Capacity: 660 lb / 300 kg
Resolution: 0.2 lb / 0.1 kg
Display: 1” / 25 mm LCD
Digital Height Range: 3ft 11.2” – 6ft 7.5” (120–202 cm), resolution 0.1” / 1 mm
Mechanical Height Range: 11 ¾” – 79 ½” (30–202 cm), graduation 1/16” / 1 mm
Platform Size (W × D × H): 13 ¾” × 16 ½” × 2 ?” (349 × 419 × 60 mm)
Product Footprint (W × D × H): 14 ?” × 21 ?” × 53 ?” (359 × 537 × 1362 mm)
Weight: 22.4 lb / 10.2 kg
Power Source: 6 AA batteries (included) or optional adapter (ADPT31)
Connectivity: Via optional Pelstar® wireless technology
Warranty: 1-year limited manufacturer warranty
Best in class for physicians requiring both weight and digital height measurement in one device.
