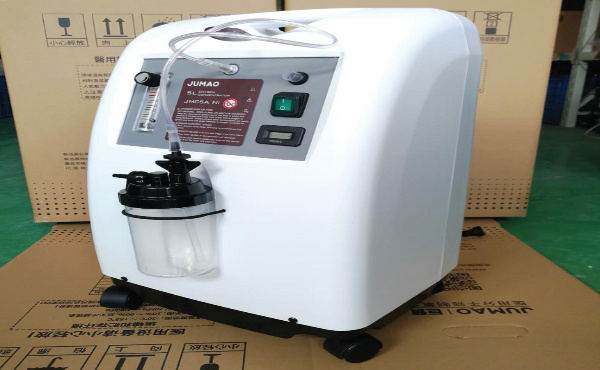

JMC5A Ni Oxygen Concentrator
Compact • Reliable • Professional
The JMC5A Ni is JUMAO’s most popular and classic 5 LPM oxygen concentrator, trusted worldwide for its durability, user-friendly interface, and strong reputation. Designed with care facilities and professional healthcare environments in mind, it combines compact portability with professional performance.
Key Highlights
5 LPM Capacity – consistent oxygen delivery with purity up to 93% ± 3%.
Portable Design – lightweight build with 4 universal 360° wheels and a top handle.
User-Friendly Interface – simple control panel, front-mounted humidifier bottle, and real-time display.
Reliable Operation – built-in timing function, reset fuse, and intelligent alarms.
Proven Performance – enjoys a strong reputation in the market.
Technical Specifications
Model JMC5A Ni (CE)
Display Usage Real-Time Monitoring Display
Compressor Oil-Free
Power Consumption 390 W (average)
Input Voltage/Frequency AC 220V ± 10%, 50 Hz
AC Power Cord Length 8 ft (2.5 m)
Sound Level ≤41 dB(A)
Outlet Pressure 5.5 PSI (38 kPa)
Flow Range 0.5 – 5.0 LPM
Oxygen Concentration 93% ± 3% @ 5 LPM
OPI Alarm Low O2: 82% (Yellow), Very Low O2: 73% (Red)
Operating Altitude 0 – 6,000 ft (0 – 1,828 m)
Operating Humidity Up to 95% RH
Operating Temperature 5 – 40 °C (41 – 104 °F)
Maintenance Inlet filter clean: every 2 weeks; Intake filter replacement: every 6 months
Dimensions (Machine) 33 × 26 × 54 cm (13 × 10.2 × 21.2 in)
Dimensions (Carton) 42 × 35 × 65 cm (16.5 × 13.8 × 25.6 in)
Weight Net: 16 kg (35 lbs) / Gross: 18.5 kg (40 lbs)
Alarms System malfunction, power failure, impeded flow, overload, overheat, abnormal O2 concentration
Warranty 1 years
Advanced Features
Integrated Control Panel
Simple front-mounted controls.
Rotating flow meter knob for 0.5–5.0 LPM adjustments.
Green, yellow, and red indicators with audible alarms.
Elapsed time meter and circuit breaker for safety.
Atomization outlet for additional treatment needs.
Patent-Protected Double Valve System
6 patented technologies for reliability.
PE valve + Balance control valve ensure oxygen purity up to 96%.
Guarantees stable, smooth oxygen flow without fluctuations.
Continuous Oxygen Supply
High-performance compressor with unique cooling air duct design.
External heating and condensation technology for 24/7 uninterrupted use.
Reliable therapy without fear of interruptions.
Built-in Sensor O2 Monitor
Continuously tracks oxygen purity.
Alerts via control panel indicators if levels fall below safe limits.
Easy Maintenance & Humidifier Access
Front elastic band for quick humidifier bottle placement.
Only routine maintenance: side filter replacement every 2 weeks.
Supplied By: Mastermed Equipment Trading LLC
