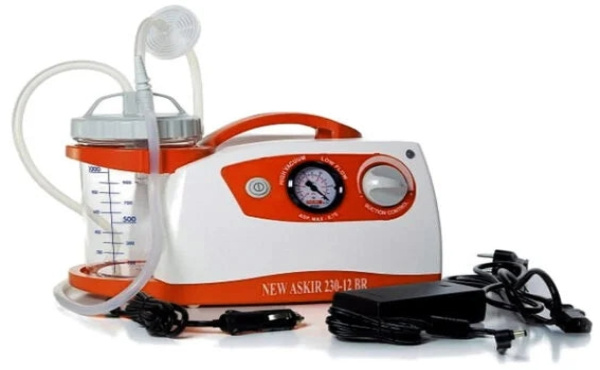

NEW ASKIR 230/12V BR - Portable Suction Unit



DESCRIPTION:

The NEW ASKIR 230/12V BR is a portable electric suction device designed for the aspiration of body fluids, as well as oral, nasal, and tracheal aspiration in both adults and children. Suitable for emergency applications and post-operative respiratory care in home and clinical settings, it is lightweight, versatile, and easy to transport. This unit supports three power supply options—AC/DC adapter, rechargeable Pb battery, and 12V car adapter—making it ideal for both professional and home healthcare use. The device is equipped with a vacuum meter (bar & kPa), vacuum regulator, and visual/acoustic low-battery alarms. It complies with EN 60601-1-11 standards for home healthcare environments and carries IP21 protection.



TECHNICAL FEATURES:



Motor: Oil-free, maintenance-free piston pump.

Maximum vacuum (adjustable): -0.75 bar / -75 kPa / -563 mmHg.

Maximum free air flow rate: 16 L/min.

ISO 10079-1 Classification: HIGH VACUUM / LOW FLOW.

Power supply options:

AC/DC Universal Adapter (100-240V / 50-60Hz, 100VA).

Internal rechargeable Pb battery (12V – 4A), autonomy ~80 min, recharging time ~240 min.

12V car adapter (12V – 1.9A).

Noise level: 63 dBA.

Duty cycle: Continuous operation (by mains only).

Weight: approx. 3.50 kg.

Dimensions: 35 x 21 x 18 cm.

IP Protection: IP21.

Warranty: 1 year.

Place of Manufacturing: Italy.



ACCESSORIES INCLUDED:



Liquid collection jar with overflow valve system.

6x10 mm silicone tubes (autoclavable) + conical connector Ø 8-9-10 mm.

Antibacterial & hydrophobic filter (single-patient).

CH20 cannula.

AC/DC universal adapter.

12V car adapter.



OPTIONS:



Stand on castors (REF. 27730).

Carrying bag (REF. SP 0207) – for unit and consumables.



APPLICATIONS:



Hospitals and clinics

Emergency medical care

Post-operative respiratory care

Home healthcare environments



Supplied and Service Support By Mastermed Equipment Trading LLC
