Brand: Archimed,Turkey
Model:OT 03-S Beta

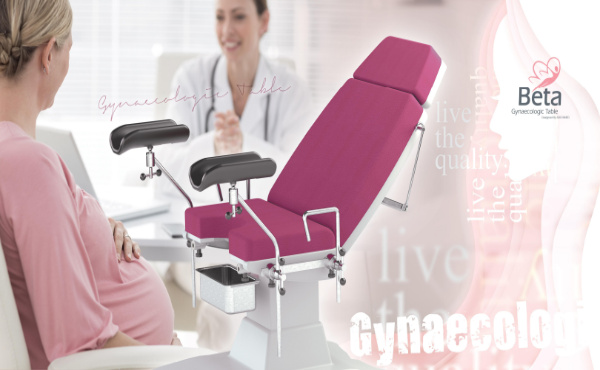

The OT 03-S Archimed Beta Gynaecologic Table is a 3-motor electric examination chair designed for gynecology, urology, examination procedures, and minor surgical operations.
Manufactured by Archimed, Turkey.
1. Key Features
Electric Operation: The chair movements are powered by 3 DC motors and controlled via a handset (hand control).
3-Part Design: It consists of a back rest, seat part, and leg rest.
Movement Functions:
Back up & down.
Chair up & down (vertical height adjustment).
Trendelenburg & Reverse Trendelenburg movements.
Accessory Rails: Features stainless steel rails on both sides for easy mounting and adjustment of all accessories (up/down/right/left).
Integrated Drain Pan: Includes a drain pan that remains stable and is not affected by table movements during Trendelenburg adjustments.
Leg Supports: The leg supports are easily removable and can be manually adjusted to the desired positions.
Construction:
Steel construction is painted with electrostatic powder coating and protected with galvanization against corrosion.
The construction is covered with anti-bacterial and easy-cleanable ABS plastic.
ABS covering is designed to keep dust/dirt out of the upholstery.

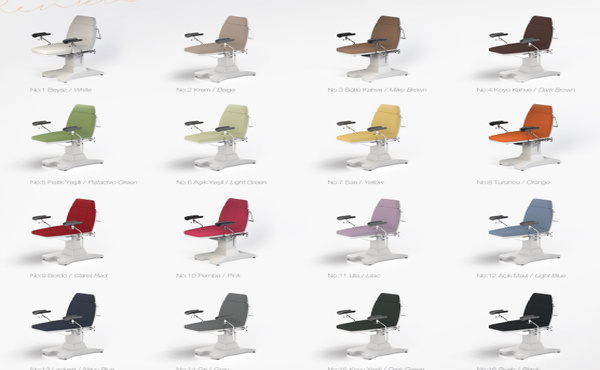

Upholstery: Covered with synthetic leatherette, and available in 16 different color options.
2. Technical Specifications & Dimensions (Based on image: uploaded:image_dfa8a4.png)
Specification Metric (mm)
Full Length 1680 mm
Width (En) 657 mm
Width with Armrests 708 mm
Min. Height 610 mm
Max. Height 810 mm
Backrest Width 630 mm
Backrest Length 590 mm
Seat Width 600 mm
Seat Length 400 mm
Footrest Length 570 mm
Max Safe Load Capacity 180 kg
Product Weight 95 kg
3. Angle Adjustments
Feature Angle
Backrest Angle 78° (From Horizontal)
Trendelenburg 13°
Reverse Trendelenburg 4°
