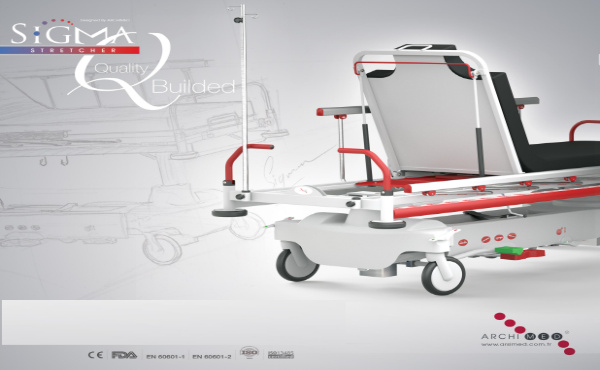

ES00 - S Archimed Sigma Emergency Stretcher
In emergency situations, Sigma Emergency Stretcher allows
extremely safe and fast transportation with its ergonomic
and user-friendly design.
SAFETY
- Solid and durable construction
- Side rails with safe locking system
- Central braking system and 5th directional wheel for
maximum control and stability
- Equipped with bumpers to prevent damage during transport
- Safe maximum load capacity: 300 kg
DESIGN
- 200 mm castor wheels with central braking system, 360° rotatable
- Shock-absorbing, ergonomic design
- Backrest adjustment up to 62°
- Trendelenburg & Reverse Trendelenburg: 14° each
- Easy-to-clean, antibacterial mattress (30 density, 10 mm thick)
- Adjustable IV pole, oxygen cylinder holder, drainage bag holder
- Functional, minimal and modern design
TECHNICAL SPECIFICATIONS
Stretcher Length : 2170 mm
Upholstery : 610 x 1970 x 10 mm, 30 Density
Stretcher Width : 840 mm
Backrest Length : 700 mm
Back Tilt : 62°
Min. Height : 560 mm
Max. Height : 870 mm
Wheel Diameter : 200 mm
Stretcher Weight : 110 kg
Safe Max. Load : 300 kg
Trendelenburg : 14°
Reverse Trendelenburg : 14°
5th Castor : 125 mm
EQUIPPED ACCESSORIES
- Adjustable IV Pole
- Oxygen Cylinder Holder
- Drainage Bag Holder
- Side Rails (Folding)
- Comfortable Mattress
