Brand: Archimed,Turkey
Model: DC 04 -S Archimed Panamera

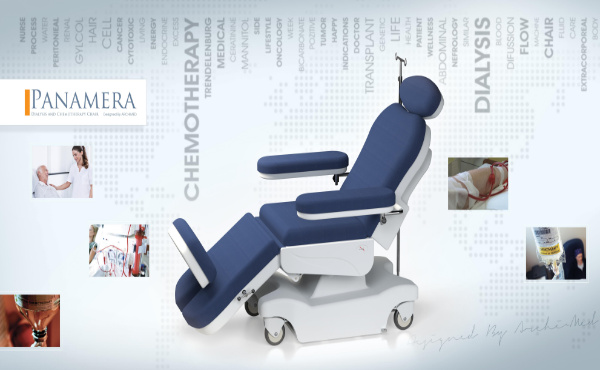

Archimed Panamera Dialysis and Chemotherapy Chair (4 Motors) is designed to provide maximum comfort and versatility for long treatments such as dialysis, oncology, chemotherapy, apheresis, rehabilitation, plasmapheresis, and blood transfusion.
Manufactured by Archimed, Turkey.
It is equipped with 4 DC motors that control all major movements.
Key Features and Functionality
Motorized Adjustments (4 DC Motors): All major movements are performed by 4 DC motors using a handset control.
Functions Controlled: The chair performs the following movements:
Back up & down.
Chair up & down (vertical height adjustment).
Leg rest up & down.
Trendelenburg & reverse Trendelenburg movements.
Upholstery & Comfort:
The chair is covered with cleanable, waterproof material and is orthopedically designed.
The cushion is made of viscoelastic foam (memory foam), which is body heat and weight sensitive, allowing it to contour to the body shape, distribute pressure evenly, and potentially reduce decubitus ulcers (bed sores) during long periods of seating.
Upholstery is made of leatherette, which is easy to clean and harmless to the skin.
Construction & Safety:
The construction is protected with electrostatic powder coating and galvanize against corrosion.
ABS Covering: ABS plastic covering is designed to keep itself within the upholstery, blocking dust or dirt from going into the upholstery.
The chassis is made of 14 mm sheet metal, and the lifting system is fixed onto a 20 mm steel frame holder.
The chair features 4 lockable castors to fix it to the floor.
Armrests: The armrests move together with the backrest while staying parallel to the ground. They are easily removable.
Accessories:
A removable cramp support is included and can be adjusted according to the patient's height to prevent cramps during dialysis.
A removable head part and Neck Cushion are provided.
Technical Specifications:
Specification Value (Approximate)
Max. Safe Load Capacity 180−220kg
Min. Height 550mm
Max. Height 750mm
Trendelenburg Angle 13degrees
Reverse Trendelenburg Angle 5degrees
Back Section Angle 70degrees
Leg Section Angle 35degrees
Full Length (Approx.) 201cm
Upholstery Feature Viscoelastic Foam / Leatherette

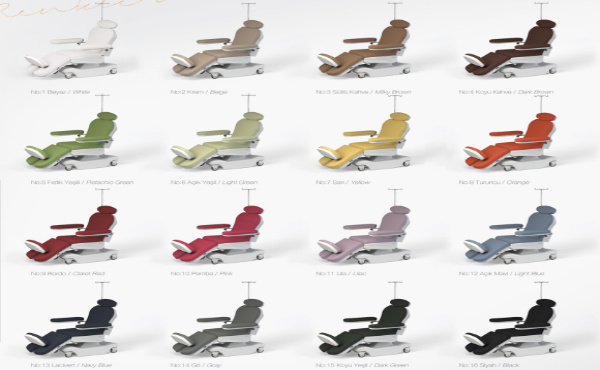

Color Available:
White
Beige
Milky Brown
Dark Brown
Pistachio Green
Light Green
Yellow
Orange
Claret Red
Pink
Lilac
Light Blue
Navy Blue
Gray
Dark Green
Black
