Emergency Stretcher – NF-A2
Technical Features
Adjustable loading wheel height to fit different ambulance board levels
Backrest adjustable from 0–65° via gas spring
Swing-down side rails for patient protection during transfer
Mechanical legs controlled by handles on both sides
Safety lever prevents accidental folding of legs during loading or standing
Single-person operation to slide stretcher into the ambulance
Lockable with ambulance fixing device for secure transport
Constructed from high-strength aluminum alloy
Equipped with φ125 mm wide rubber castors (two with brakes)
Designed for ambulances, hospitals, and emergency centers

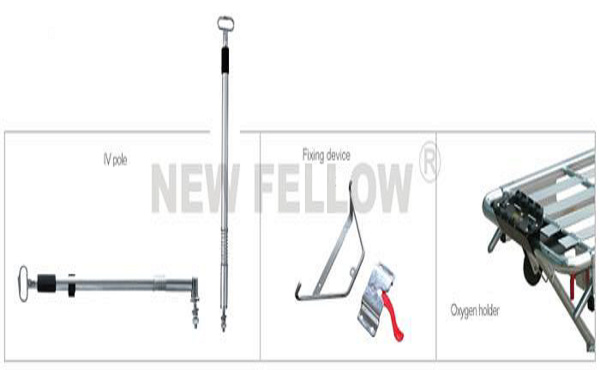

Accessories
Waterproof seamless welding PVC mattress (5 cm foam thickness)
3 belts (chest, hip, knee)
Fixing device L01
Model & Packing Specifications
Model: NF-A2
High Position: 195 × 55 × 85 cm
Low Position: 195 × 55 × 25 cm
Max Backrest Angle: 65°
Net Weight (N.W): 40 kg
Load Bearing: 180 kg
Packing Quantity: 1
Packing Size (L × W × H): 201 × 62 × 28 cm
Gross Weight (G.W): 47 kg
Key Benefits
Adjustable height for multiple ambulance types
Strong, durable aluminum structure
Safety-focused design with side rails and safety lever
Easy single-person loading and unloading
Comfortable patient support with included mattress and belts
