Brand: Advanced Instrumentations,USA
Models: D-100+

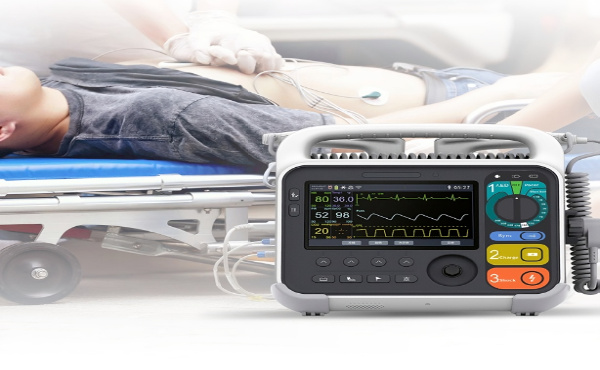

The D-100+ Defibrillator Monitor is a compact, multi-function device integrating four clinical modes — Defibrillation, Monitoring, Pacing, and AED — designed for emergency, ICU, cardiology, anesthesia, and transport use.
Its 7-inch color display provides an intuitive interface for quick readings under any condition, offering exceptional versatility for both in-hospital and pre-hospital environments.
Key Features
Four integrated modes: Defibrillation, Monitoring, Pacing, AED
3-Step Defibrillation: Select energy → Charge → Deliver shock
CPR mode with visual and audio guidance
EtCO2 monitoring (optional, mainstream or sidestream)
Lightweight and portable (approx. 5.2 kg) with handle, hook & carrying bag
Multi-parameter monitoring: 12-lead ECG, NIBP, SpO2, TEMP, EtCO2
Manual & AED operation with impedance compensation
Rechargeable lithium-ion battery provides up to 5 hours of operation
Automatic event recording and data storage
Complete accessory set: external paddles, ECG cables, NIBP cuff, SpO2 sensor, temperature probes
Network ready with wired and 5G wireless connectivity
Monitoring Parameters
12-Lead ECG Available
NIBP Available
SpO2 Available
TEMP Available
EtCO2 Optional
Technical Specifications
General Size: 320 × 200 × 120 mm
Weight: 5.2 kg
Power source: AC 100–240 V 50/60 Hz / Rechargeable Li-ion battery
Defibrillator Waveform: Biphasic truncated exponential (BTE) with impedance compensation
Energy range: 1–360 J
Charge time: < 10 s @ 360 J
Modes: Manual / Asynchronous / Synchronous / AED
Non-Invasive Pacing Mode: Fixed / On-Demand
Waveform: Monophasic square wave
Rate: 30–300 bpm
Current: 0–200 mA @ ≤ 45 V or ≤ 5 mA (whichever greater)
Monitoring Parameters: 3-lead or 12-lead ECG, NIBP, SpO2, Respiration, EtCO2 (optional), Temperature (1 or 2 channels)
Display 7-inch color LCD with high-resolution, intuitive user interface
Network Wired and 5 G wireless connectivity
Battery Rechargeable Li-ion battery
Operating time ≈ 5 hours
Recharge time < 3 hours
Applications
Emergency care and ambulance use
Cardiology and intensive care units
Hospital transport and anesthesia monitoring
