Brand: Edan
Type: 3 Leads Pinch / Grabber
The Edan Compatible Direct-Connect ECG Cable – 3 Leads Pinch / Grabber is designed for high-accuracy ECG signal monitoring in both adult and pediatric patients.
Built with a 45° angled, 6-pin keyed connector, this cable ensures secure, reliable connectivity across Edan and a wide range of compatible patient monitoring systems.
The TPU-jacketed trunk and lead cables provide superior flexibility, long lifespan, and resistance to twisting and wear, ensuring consistent signal quality during extended clinical use.
With pinch/grabber-style electrode connectors, it allows quick and secure attachment, enabling efficient patient setup in hospitals, clinics, and emergency environments.
Compatibility
AAMI
All
ATL
800, 800 Plus, 800Plus, Apogee, CX ATL Ultrasound, CX200, CX400, HDI 9/200, HDI 9/2000, Interspec Cardiology XL, Mark IV, Mark Vii, Ultramark 4/5/7/9
Abbott
EX-50, Lifecare 5100, Lifecare 5200
Advanced Instrumentations
PM-1000, PM-1000EX
American Optical
26125, 33167, 5260, 5330, Pulsar 4
Carewell
CPM-8000
Conmed
90347
Contec
CMS 6000, CMS 6800, CMS 7000, CMS 8000, CMS 9000
Covidien > Nellcor
C-LOCK, N-1000, N-200, N-250, NPB-3900, NPB-4000
Criticare
1100, 2200, 504US, 504USP, 506, 507, 507E, 507ELC2, 507S, 508, 602-4B, 602-4USP, 8100, 8100E, 8100EP, 8100EP1, Poet 2, Scholar, nCompass, nGenuity, nGenuity 8100E
DIN Style
All
DRE
Waveline EZ MAX, Waveline Pro
Datex Ohmeda
enGuard CM5
Digicare
LW600
Dixtal
DX 2022, DX 2515
Draeger > Air Shields
HRRM-71-1, HRRM-71-2, II, III, Porta-Fib I, Porta-Fib II, Porta-Fib III, System 5 (New), System 6 (Neonatal)
Draeger
Vitalert 2000, Vitalert 3000
Edan
Elite V5, Elite V6, Elite V8, M3, M3A, M3B, M50, M8, M80, M8A, M8B, M9, M9A, iM60, iM70, iM8, iM80, iM80 (Nellcor and Non-Nellcor), iM8A, iM9, iM9A
GE Healthcare > Corometrics
556
GE Healthcare > Critikon > Dinamap
8100T, 8700 Series, 9700 Series, MPS Select, Pro 1000
Goldway
G30, G40, UT4000 Series, UT4800, UT6000 Series
Guthan
1000
Infinium
Infitron II, Omni, Omni II
Interspec (Irex) (J&J)
Cardiology XL, Mark IV, Mark Vii, Ultramark 4, Ultramark 5/7/9
Invivo
Escort 100–300, 360SL, 450SL, Escort Prism, M12, Millennia 3500, PortaPak Series
Ivy Biomedical
101, 3000, 402, 405T, 700, 7600, Cardiac Trigger Monitor 3000/3150
LSI
261, LS5
Mediana
M30, YM6000
Midmark > Cardell
9403V, 9405, 9500 Series, MAX-12 Duo HD, Max-1
Mindray > Datascope
DPM4, DPM5, MEC 1000–2000, MEC-1200Vet, PM 7000–9000
Mortara
Surveyor S12, S19
Nihon Kohden
7102A, BSM-7102A, BSM-7300A, BSM-8108A, BSM-8301A, BSM-8500A, Life Scope 6–12 Series
Novametrix
902, 903, 910, Life Defense 1
Omron > Colin
BP-308, BP-408, CBM3000, M20, M30, MS20
PPG
Guardian 1001, N1001
PaceTech
2100–4100 Series, MiniMax 4000CL, Vitalmax 2100–4100 Series
Philips
M3921A–M3929A, iE33 xMatrix Ultrasound CX50
Siemens
Symbia Evo
Smiths Medical > BCI
3101, 3404, 6100, 6200, 9100, 9200, Advisor, Autocorr, Surgivet
Spacelabs
500–90724 Series, AriaTele, Medic 3–6, PC Bedside, Series 600, Series 900
Stryker > Medtronic > Physio Control
Lifepak 5–10 Series, Lifepak 6–9 Series, VSM 1–3
Venni
VI-1060P
Welch Allyn
1500, Atlas, Atlas 6200 Series, PIC 30–50, Propaq 206 EMPSC, Ultra Smart
Zoll
D900, E Series, M Series, PD1200–2000, R Series
Technical Specifications
Category: ECG
Certifications: FDA, CE, ISO 10993-1/5/10:2003E, TUV, RoHS Compliant

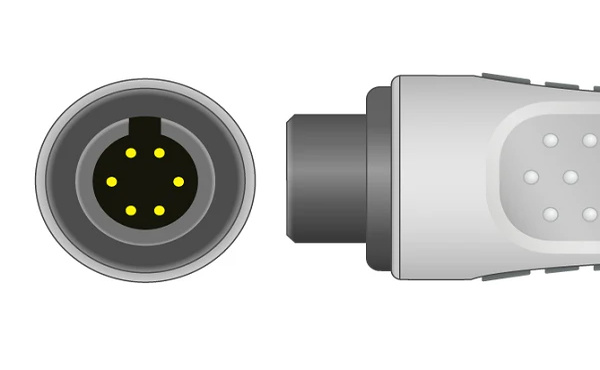

Connector Distal: Round, 45° angled, 6-pin connector, keyed
Connector Proximal: Pinch / Grabber
Latex-Free: Yes
Lead Cable Color: Gray
Lead Cable Diameter: 2.6 mm
Lead Cable Length (Limb): 3 ft
Lead Cable Length (V): 3 ft
Lead Cable Material: TPU Jacket
Lead Number: 3
Packaging Type: Bag
Packaging Unit: 1
Patient Size: Adult / Pediatric
Resistance: No
Sterile: No
Total Cable Length: 11 ft
Trunk Cable Color: Gray
Trunk Cable Length: 8 ft
Trunk Cable Material: TPU Jacket
Weight: 0.7 lb
Key Highlights
Compatible with Edan Elite, iM, and M Series monitors, and a broad range of OEM systems
3-lead pinch/grabber design for secure electrode connection
TPU jacket cables provide durability and flexibility for extended use
Suitable for adult and pediatric ECG monitoring
Lightweight, latex-free, and easy to clean, ideal for hospital and clinical us
